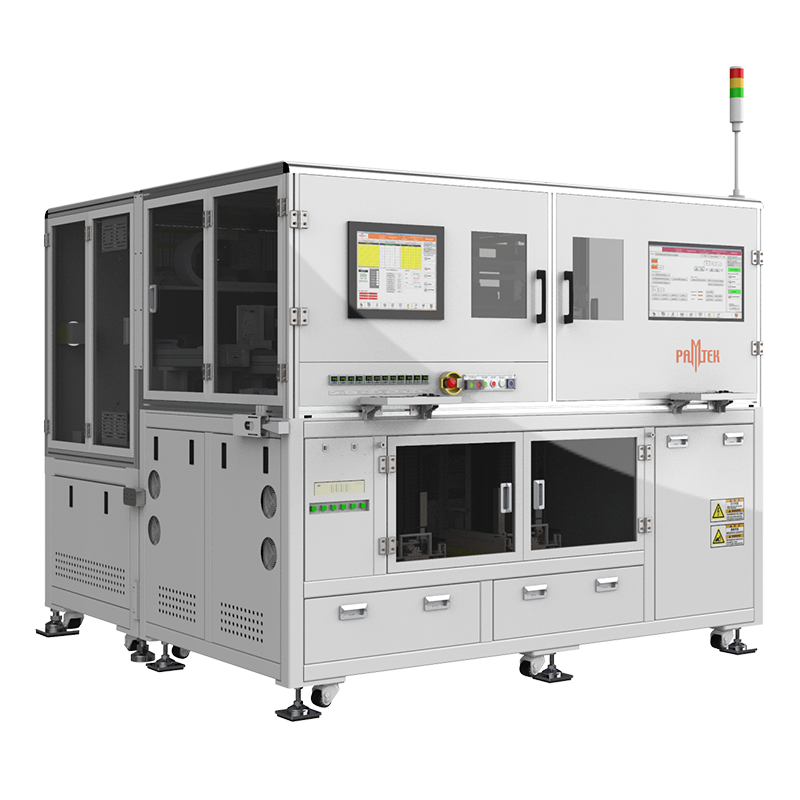

AF-Meter

Function	Actuator test
Target device	Camera module
Configuration for test	6 lasers
Tray L/UL capacity	Auto stacker / 23trays for each Loading, Good, Fail, Empty part.

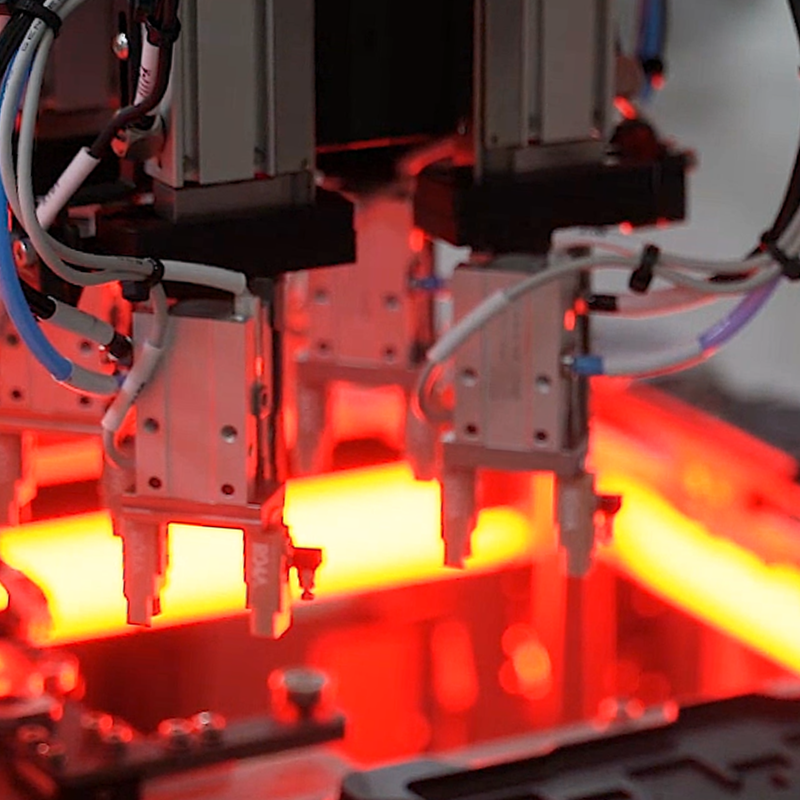

Module L/UL method	Automatic P&P, 4 pickers

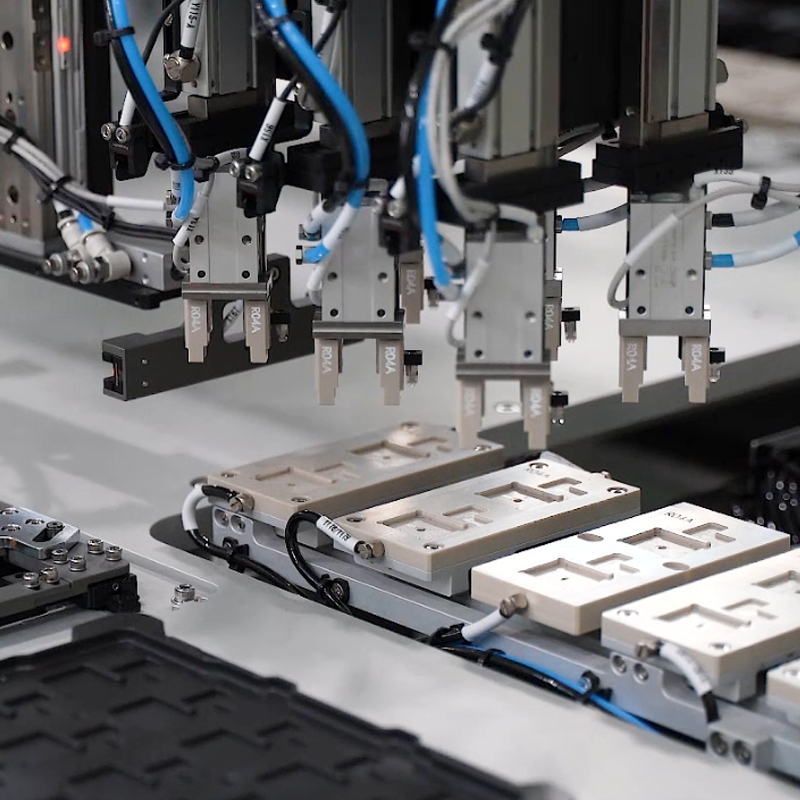

Socket	6 Sockets / Auto socket
Air Supply	5~7kg/㎤
Control PC	I7 Quad Core, 8G Byte Memory, Window 10 64bit
Power	AC220V, 50/60Hz, 7A, 1.5kW, 1 Phase
Weight	1,650kg
Dimension	1,800W x 1,600D x 1,870H mm
